Paste extruder · LDM

QZMini extruder

€ 300,00

A ram extruder for paste materials — biogel, biocomposites, clay-like mixes. The 150 ml tank lets you prototype fast on your own 3D printer, or by hand with the Control Box.

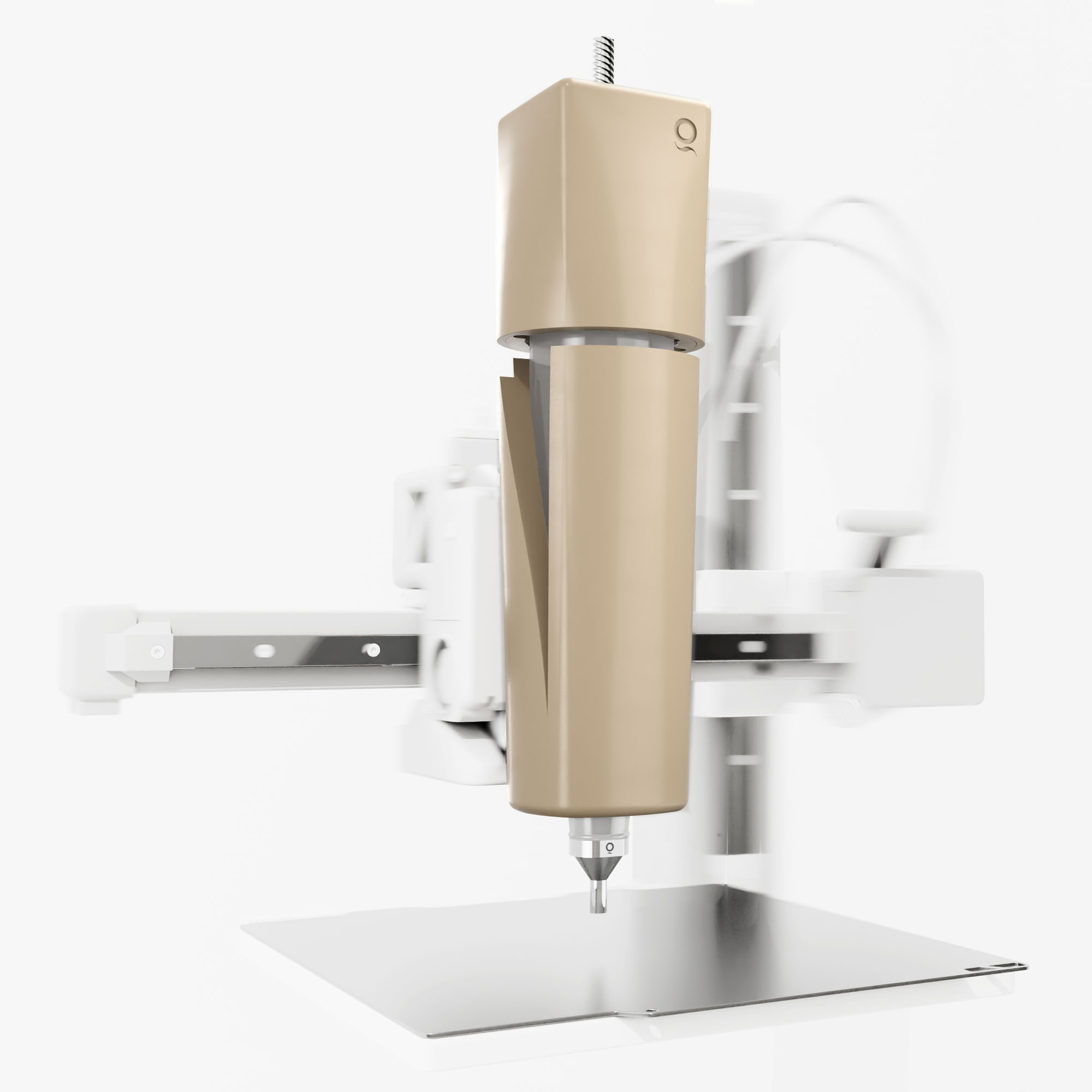

Printer. Which one will it mount on?

Control. Print with a printer, or by hand?

Extras. Spares for longer sessions.

    Total—

    Ships in 5–7 business days

    In the box

    Everything you need to start printing paste.

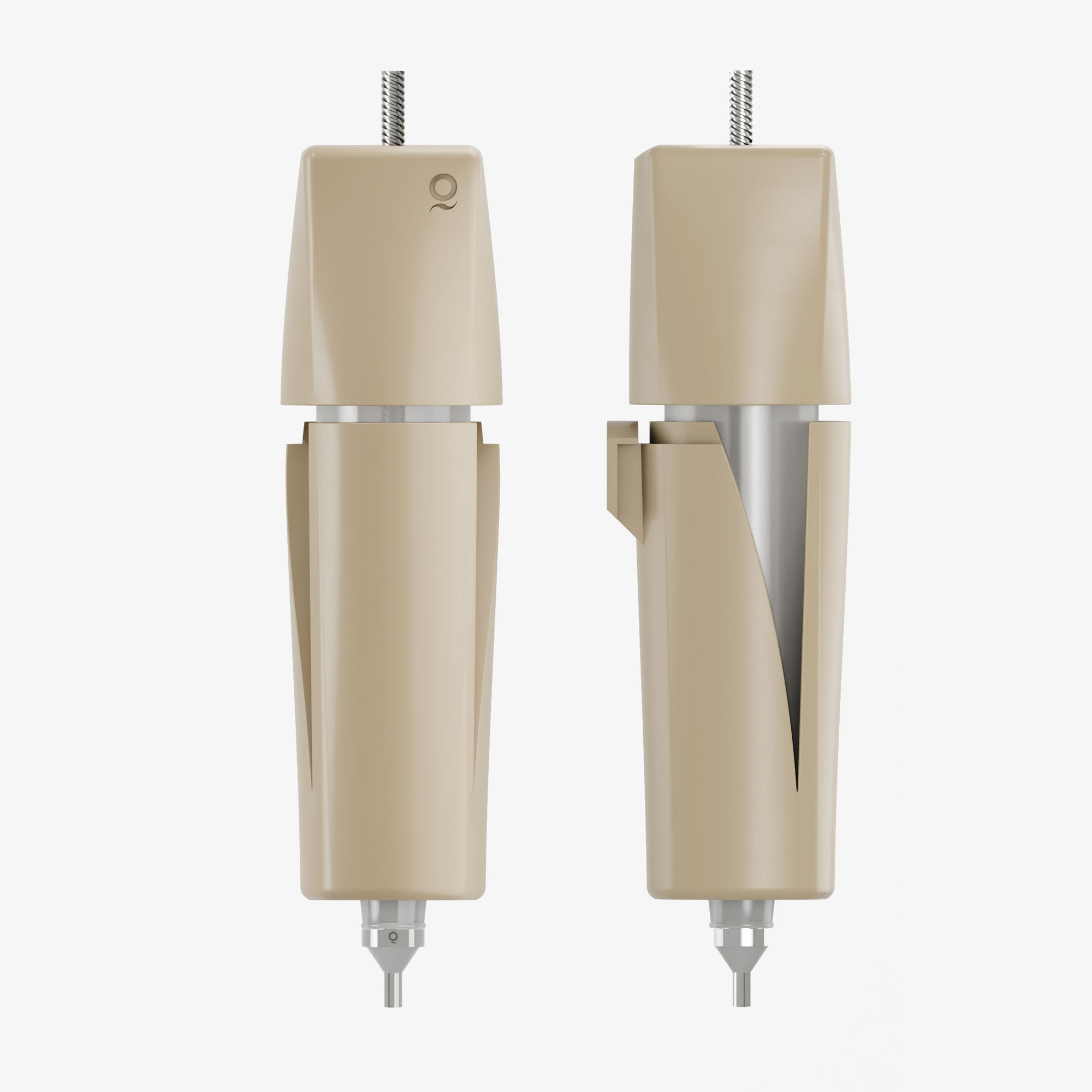

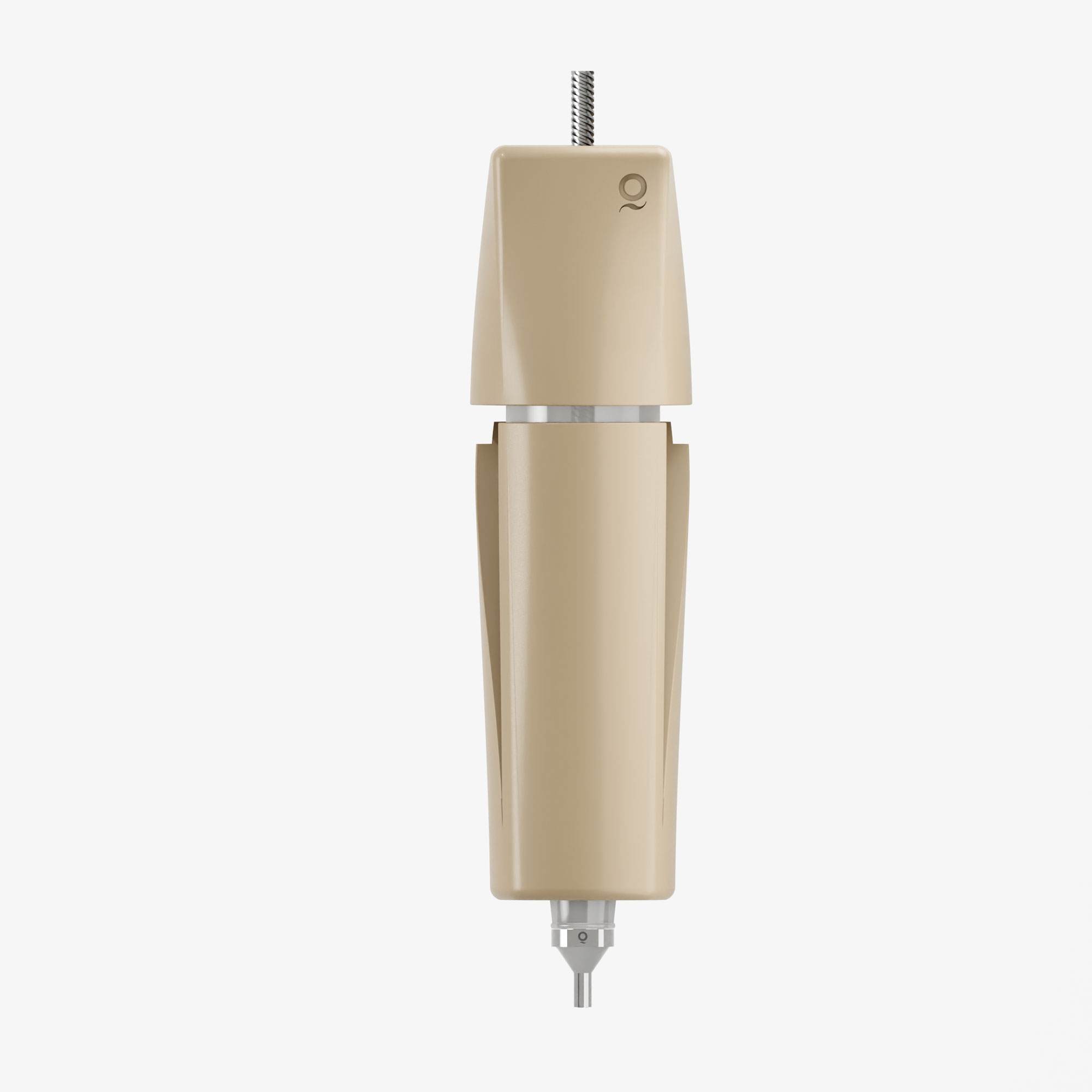

    QZMini extruder

    150 ml syringe with rubber plunger and NEMA17 direct-drive motor.

    Two nozzles

    Aluminium, 2 mm and 4 mm.

    Printer holder

    Custom mount for the printer you choose.

    Cable and adapter

    4-pin XH 2.54 cable, plus the adapter to connect it to your printer.

    Tech specs

    QZMini extruder

    Download datasheet (PDF)
    Technology
    LDM (Liquid Deposition Modeling) · ram extrusion
    Tank
    150 ml rigid plastic syringe, rubber plunger
    Nozzles
    Aluminium · 2 mm and 4 mm
    Material temp.
    Up to 70 °C (suggested max.)
    Motor
    NEMA17 stepper · direct drive · 400 mN·m holding torque
    Connector
    4-pin XH 2.54 · adapter for your printer included
    Size
    60 × 60 × 250 mm
    Weight
    380 g
    Compatibility
    Prusa, BambuLab A family, Creality, Ender, Artillery, Sigma — or manual use with the Control Box
    Total—

    QZMini extruder

    QZMini is an extruder for paste materials, suitable for working with biogel and biocomposite. Thanks to the 150 ml tank, the extruder allows fast prototyping.

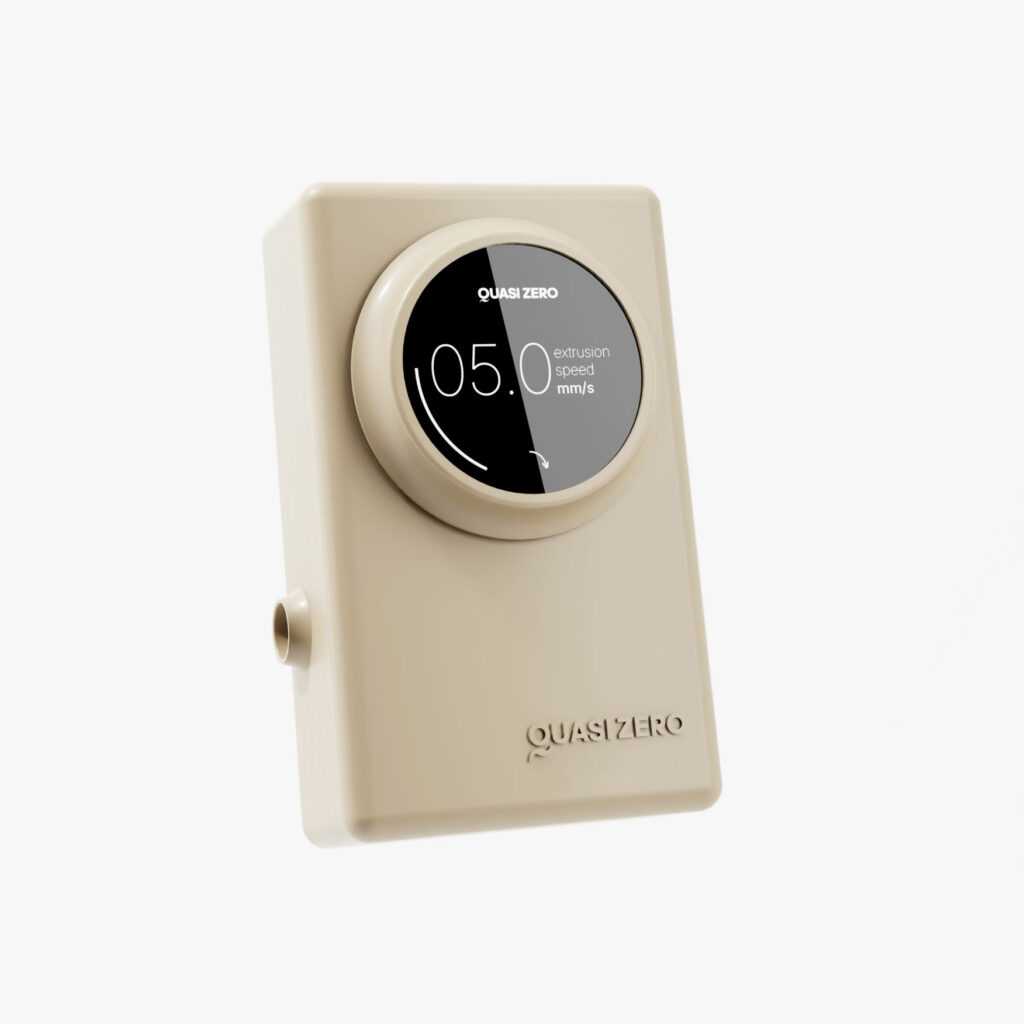

    Want to print manually? Add the Control Box to your order.



    € 300,00

    Clear
    SKU: N/A Category: Tag:

    Technology
    LDM Extruder (Liquid deposition modeling) with Ram extrusion

    Extruder characteristics
    – Nozzle: Aluminum 4 mm and 2 mm
    – Syringe: Rigid plastic, 150ml capacity, suggested material temperature max 70°C
    – Plunger: Rubber
    – Motor cover: Rigid plastic
    – Connector cable: 4 Pins XH 2.54
    – Size: 60*60*250 mm (l*w*h)
    – Weight: 0.380 Kg
    – Direct Drive Motor: NEMA17 Stepper motor / Holding torque 400mN*m

    Included accessories
    -Nozzles 4 – 2 mm
    -Custom holder for 3D Printer

    3D printer machine

    Sigma, Prusa, Ender, Creality, Artillery, BambuLab A family, No printer, Other..
